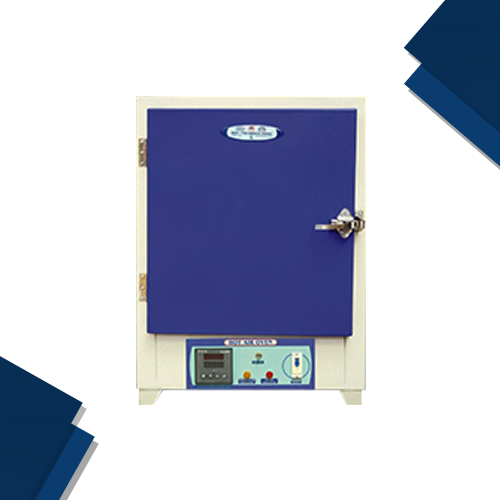

HOT AIR OVEN (BOTTOM HEATER) BTI-29
• Hot air ovens are sturdy double walled units.
• Inner chamber made of s.s.and outer made of mild steel with powder coating.
• Gap between the walls fitted with glass wool insulation to avoid heat loses.
• Heating elements are made of high grade chrome plated nicrome wire.
• Temp. Is controlled by thermostat.
• Temp. Range 50°c to 250°c and accouracy: +-2°c (with digital accuracy ±1°c)
• Air ventilations is provided on the top of the unit to remove the hot gases / fumes.
• In lab type oven heaters are placed in the bottom side of the unit.
• All the control switches & pilot lamps are fitted on the front panel.
• Trays should be supplied with g.i.wire mesh.
Optional Accessories:
1. Air Circulation Fan for Uniform Temperature.
2. Digital Temp. Controller cum indicator in lieu of thermostat with an accuracy ±1°c.
3. S.S. Trays

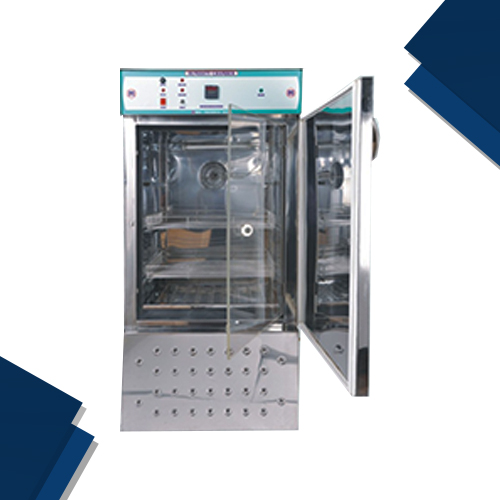

HUMIDITY OVEN GMP MODEL / STABILITY CHAMBER (BTI-24A)
• Creating ideal conditions for industrial component / product research and bio technical specification test.
• Most accurate and reliable chamber for long term high temperature and rh testing.
• Temp. Range 10°c to 60°c with an accuracy ± 1°c. Relative humidity range 35% rh to 98% rh with an accuracy ± 3% rh.
• A positive vertical air circulation ensures temperature and rh uniformity.
• Digitally set, temperature and humidity controller with direct digital read out in temperature and percentage rh.
• Low pressure boiler to generate steam for chamber humidification.
• Well balanced refrigeration system cfc free.
• Inner chamber made of s. S. 316, outer s. S. 304.
• The chamber is provided with modular removable shelves made of s. S.for complete flexibility in use.
• A key lockable insulated door having positive door gasket seals doors perfectly.
• Control panel mounted on the top of the unit.
• It works on 230 volts A.C. only.
Optional Accessories:
1. Printer Interface Facility to Connect Printer.
2. Pc Connection with Software.
