Incubators

Home / Incubators

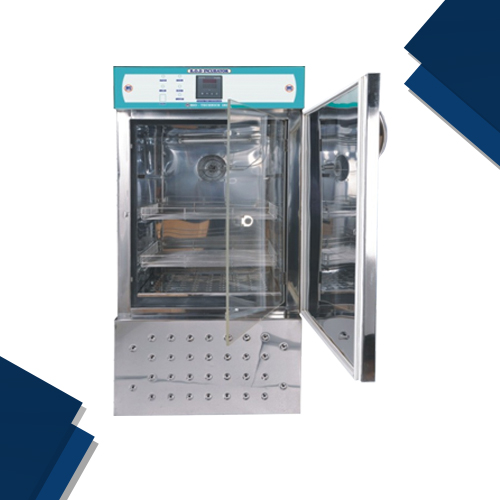

B.O.D. INCUBATOR GMP MODEL (BTI - 07)

• Designed specially biological oxyzen demand determination and other applications like general incubation, serum studies and enzyme assays tests.
• castor wheel mounted cabinet is double walled.
• inner chamber made of s. S. 316 outer chamber made of s. S. 304.
• full length inner glass / acrylic door permits inspection of specimens with out disturbing the temperature.
• temp. Controlled by digital temp. Controller cum indicator. Temperature range 5°c to 60°c with an accuracy of ± 0.5°c.
• this unit is fitted with door operated illumination lamp inside the chamber.
• equipped with hermitically sealed compressor cfc free.
• air circulation fan for maintaining temp. Uniformity through out the chamber.
• flush fitting insulated double walled door has magnetic gasket.
• the chamber is provided with modular removable shelves made of s.s.for complete flexibility is use.
• inner chamber is fitted with refrigeration evaporator, heater and air circulator for creating positive
• air flow through out the inner chamber for temp. Uniformity.
• to work at 230 v a.c. Only.
• puf insulation.

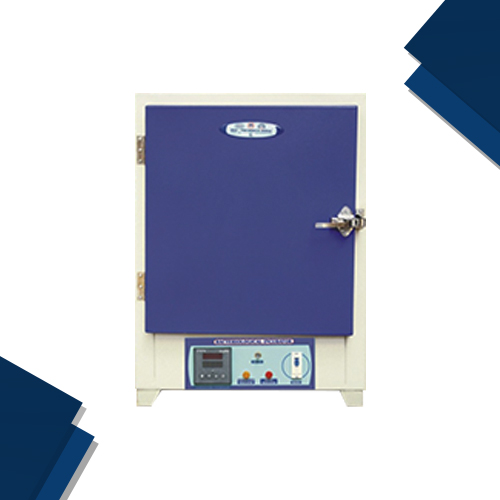

    BACTERIOLOGICAL INCUBATOR (BOTTOM HEATER) BTI – 25

    • Incubators are sturdy double walled units.
    • inner chamber made of m.s. / s.s. and outer made of mild steel with powder coating. Gap between the walls fitted with glass wool insulation to avoid heat loses.
    • heating elements are made of high grade chrome plated nicrome wire.
    • temp. Is controlled by thermostat.
    • temp. Range 5°c above ambient to 60°c and accuracy: ±2°c (with digital accuracy ±0.5°c)
    • air ventilations is provided on the top of the unit to remove the hot gases/fumes.
    • in lab type incubators heaters are placed in the bottom side of the unit.
    • all the control switches & pilot lamps are fitted on the front panel.
    • trays should be suppiled with g.i. wire mesh.

    Optional Accessories:
    1. Air Circulation Fan for Uniform Temperature.
    2. Digital Temp. Controller cum indicator in lieu of thermostat with an accuracy of ±0.5°C.
    3. S.S. Trays.
